Pacer Gait Trainer – M, L & XL

The therapist inspired gait training system.

Sizes & Dimensions

Important: User's weight must not exceed the maximum working load.

Key user dimensions (inches)

Measure the vertical distance from the bent elbow to the floor while the user is standing upright.

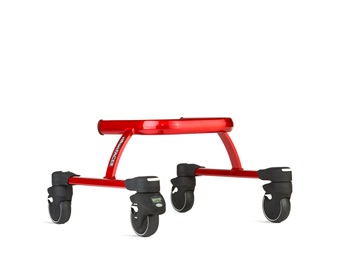

See our other sizes.

  • blue medium standard Rifton Pacer gait trainer

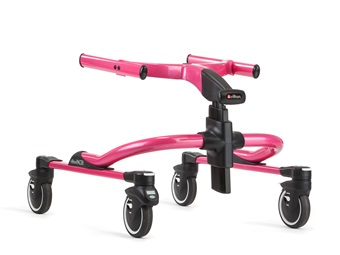

    Medium New Pacer

    K630

    Base height (without upper frame):

    Standard & utility bases: 14½
    Treadmill/stability bases: 21 – 28½

    Select View Dimensions
    Item Dimensions (inches)

    Caster diameter

    Standard & treadmill bases: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½

    Dynamic upper movement

    Vertical: 3
    Horizontal: 2

    Elbow height

    24 – 35

    Floor to top of arm prompt

    24 – 35

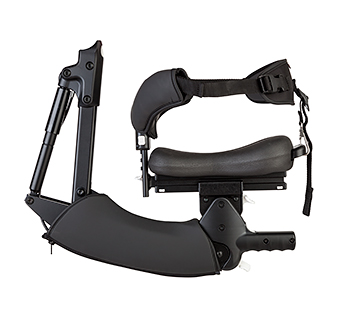

    Floor to top of MPS (not tilted)*

    9½ – 23½

    Maximum treadmill height

    Treadmill/stability bases: 11

    Maximum treadmill width

    Narrow treadmill/stability base: 29
    Wide treadmill/stability base: 34

    Overall width

    Standard base: 26
    Utility base: 30
    Narrow treadmill/stability base: 35
    Wide treadmill/stability base: 40

    Overall length

    Standard base: 30
    Utility base: 36
    Treadmill/stability bases: 41

    Frame height

    Standard & utility bases: 21½ – 27
    Treadmill/stability bases: 23½ – 36½

    Frame weight (lbs)

    Standard base: 15
    Utility base: 18½
    Narrow treadmill/stability base: 27½
    Wide treadmill/stability base: 28
    Standard upper: 7½
    Dynamic upper: 11½

    Maximum working load (lbs)

    150

  • pink large standard Rifton Pacer gait trainer

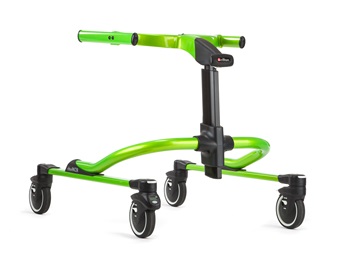

    Large New Pacer

    K640

    Base height (without upper frame):

    Standard & utility bases: 16
    Treadmill/stability bases: 21 – 28½

    Select View Dimensions
    Item Dimensions (inches)

    Caster diameter

    Standard & treadmill bases: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½

    Dynamic upper movement

    Vertical: 3
    Horizontal: 2

    Elbow height

    32 – 47

    Floor to top of arm prompt

    32 – 47

    Floor to top of MPS (not tilted)*

    17 – 35

    Maximum treadmill height

    Treadmill/stability bases: 11

    Maximum treadmill width

    Narrow treadmill/stability base: 29
    Wide treadmill/stability base: 34

    Overall width

    Standard base: 28
    Utility base: 32
    Narrow treadmill/stability base: 35
    Wide treadmill/stability base: 40

    Overall length

    Standard base: 36
    Utility base: 40½
    Treadmill/stability bases: 41

    Frame height

    Standard & utility bases: 28½ – 38½
    Treadmill/stability bases: 30 – 47

    Frame weight (lbs)

    Standard base: 15½
    Utility base: 19¼
    Narrow treadmill/stability base: 27½
    Wide treadmill/stability base: 28
    Standard upper: 9½
    Dynamic upper: 13½

    Maximum working load (lbs)

    200

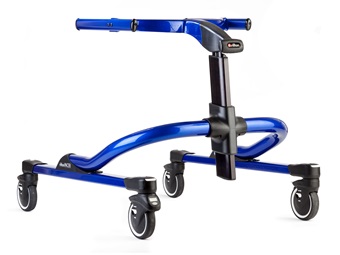

  • red XL Rifton Pacer gait trainer

    XL New Pacer

    K650

    Base height (without upper frame):

    Standard base: 18½

    Select View Dimensions
    Item Dimensions (inches)

    Caster diameter

    Standard & treadmill bases: 5½
    Utility base front casters: 8
    Utility base back wheels: 11½

    Dynamic upper movement

    Vertical: 3
    Horizontal: 2

    Elbow height

    34 – 49

    Floor to top of arm prompt

    34 – 49

    Floor to top of MPS (not tilted)*

    19½ – 37½

    Maximum treadmill height

    n/a

    Maximum treadmill width

    n/a

    Overall width

    Standard base: 31½

    Overall length

    Standard base: 39¾

    Frame height

    Standard base: 31 – 41

    Frame weight (lbs)

    Standard base: 22½
    Standard upper: 11
    Dynamic upper:15

    Maximum working load (lbs)

    250

Key user dimensions (inches)

Measure the vertical distance from the bent elbow to the floor while the user is standing upright.

See our other sizes.

red XL Rifton Pacer gait trainer

XL New Pacer

(K650)

Elbow height

24 – 35

32 – 47

34 – 49

Item Dimensions (inches)

Floor to top of arm prompt

24 – 35

32 – 47

34 – 49

Floor to top of MPS (not tilted)*

9½ – 23½

17 – 35

19½ – 37½

Overall width

Standard base: 26
Utility base: 30
Narrow treadmill/stability base: 35
Wide treadmill/stability base: 40

Standard base: 28
Utility base: 32
Narrow treadmill/stability base: 35
Wide treadmill/stability base: 40

Standard base: 31½

Overall length

Standard base: 30
Utility base: 36
Treadmill/stability bases: 41

Standard base: 36
Utility base: 40½
Treadmill/stability bases: 41

Standard base: 39¾

Frame height

Standard & utility bases: 21½ – 27
Treadmill/stability bases: 23½ – 36½

Standard & utility bases: 28½ – 38½
Treadmill/stability bases: 30 – 47

Standard base: 31 – 41

Base height (without upper frame)

Standard & utility bases: 14½
Treadmill/stability bases: 21 – 28½

Standard & utility bases: 16
Treadmill/stability bases: 21 – 28½

Standard base: 18½

Frame weight (lbs)

Standard base: 15
Utility base: 18½
Narrow treadmill/stability base: 27½
Wide treadmill/stability base: 28
Standard upper: 7½
Dynamic upper: 11½

Standard base: 15½
Utility base: 19¼
Narrow treadmill/stability base: 27½
Wide treadmill/stability base: 28
Standard upper: 9½
Dynamic upper: 13½

Standard base: 22½
Standard upper: 11
Dynamic upper:15

Dynamic upper movement

Vertical: 3
Horizontal: 2

Vertical: 3
Horizontal: 2

Vertical: 3
Horizontal: 2

Caster diameter

Standard & treadmill bases: 5½
Utility base front casters: 8
Utility base back wheels: 11½

Standard & treadmill bases: 5½
Utility base front casters: 8
Utility base back wheels: 11½

Standard & treadmill bases: 5½
Utility base front casters: 8
Utility base back wheels: 11½

Maximum treadmill width

Narrow treadmill/stability base: 29
Wide treadmill/stability base: 34

Narrow treadmill/stability base: 29
Wide treadmill/stability base: 34

n/a

Maximum treadmill height

Treadmill/stability bases: 11

Treadmill/stability bases: 11

n/a

Maximum working load (lbs)

150

200

250

*This measurement is taken at the lowest frame and MPS height, and the highest frame and MPS height.



Chest prompt chest circumference / height (inches)
Small 14 – 28 / 4½
Medium 22 – 40 / 6½
Large 28 – 50 / 8
Important: Make sure that the chest prompt width allows for growth.

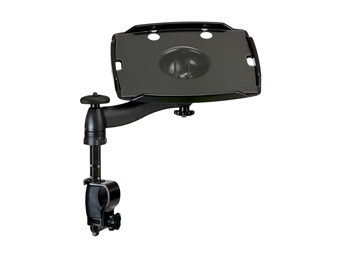

Communication tray (inches)
Inside Dimensions
8½ x 11
Maximum working load (lbs)
 10

Having trouble printing this chart? Try this printer-friendly chart (pdf) instead. It includes prompt dimensions.



More information about the new Pacer gait trainer is located in the following Product Manual:

Large, Medium and XL New Pacer (pdf)



Download the New Pacer Positioning Checklist



Download the XL Pacer/E-Pacer/TRAM Comparison Chart



Medium and Large Pacer size comparison
An illustration of size comparisons of the medium and large Rifton Pacer gait trainers.

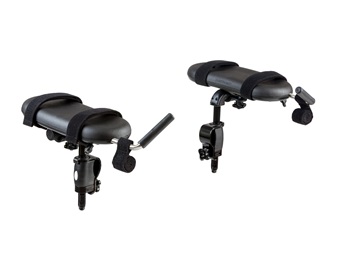

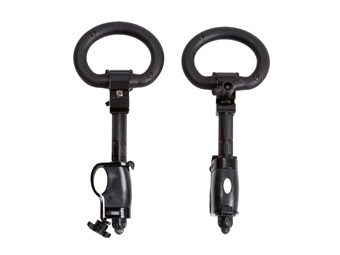

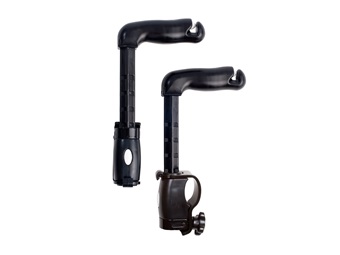

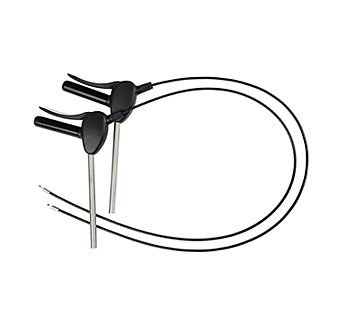

Chest prompts Arm prompts Arm platforms

Range of circumference: small 14"– 28", med 22"– 40", large 28"– 50"

Height: small 4½", med 6½", large 8"

Padded surface area: small 4½" x 8", large 5" x 9"

Adjustment range: (elbow to fist): small 9"– 12½", large 10½"– 15"

Padded surface dimensions: 13½"x 5½"

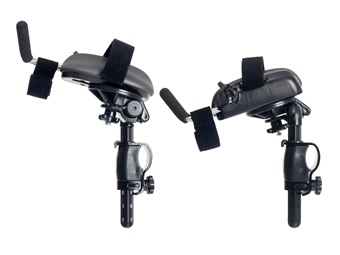

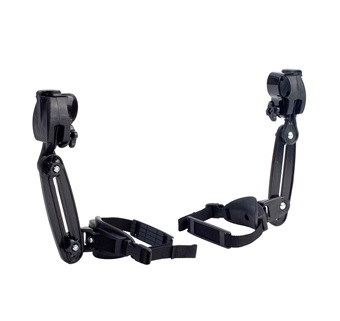

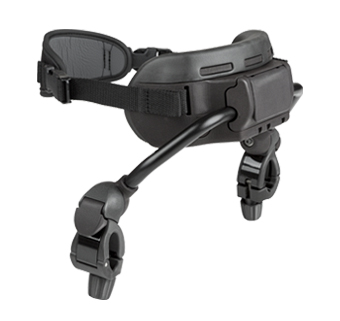

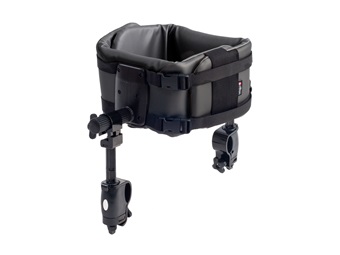

Rifton Pacer chest prompt Rifton Pacer arm prompts Rifton Pacer gait trainer arm platforms
Hip positioner Pelvic support Thigh prompts

See diagram below

See diagram below

Length (from clamp to strap): small 5"– 8", large 5"– 11”

Max. leg circumference: small 15", large 20"

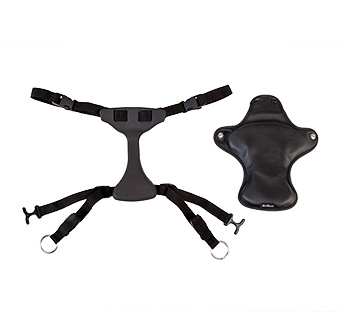

Rifton Pacer gait trainer hip positioner
Rifton Pacer Hip positioner dimensions

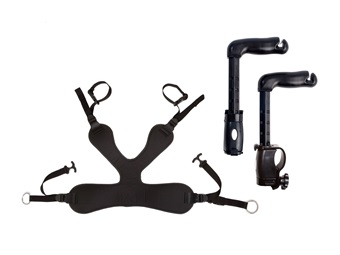

Rifton Pacer small pelvic support no handholds
Rifton Pacer Pelvic support dimensions
Rifton Pacer thigh prompts
