Sizes & Dimensions
Important: User’s weight must not exceed the maximum working load.
Measure the vertical distance from the bent elbow to the floor while the user is standing upright. This guides selection of a gait trainer for adults or children and helps you choose between frames and bases.
| Item Dimensions (inches) | K630 Medium Pacer |
|---|---|
| Elbow height |
24 – 35 |
| Floor to top of arm prompt |
24 – 35 |
| Floor to top of MPS (not tilted)* |
9½ – 23½ |
| Overall width |
Standard base: 26 |
| Overall length |
Standard base: 30 |
| Frame height |
21½ – 27 |
| Base height (without upper frame) |
14½ |
| Frame weight (lbs) |
Standard base: 15 |
| Dynamic upper movement |
Vertical: 2 |
| Caster diameter |
Standard base: 5½ Utility base front casters: 8 Utility base back wheels: 11½ |
| Maximum working load (lb) |
150 |
*This measurement is taken at the lowest frame and MPS height, and the highest frame and MPS height.
| Chest prompt range of circumference / height (inches) |
|
| K514 small | 14 – 28 / 4½ |
| K524 medium | 22 – 40 / 6½ |
| K534 large | 28 – 50 / 8 |
| Important: Make sure that the chest prompt width allows for growth. |
|
| Chest pad range of circumference / pad height (inches) |
|
| K629 small | 14 – 28 / 4 |
| K639 medium | 22 – 40 / 5 |
| K649 large | 28 – 50 / 6 |
| Important: Make sure that the chest pad width allows for growth. |
|
| Communication tray (inches) | |
| Inside dimensions |
8½ x 11 |
| Maximum working load (lbs) |
10 |
| Hip positioner dimensions (inches) – without pad |
||
 |
||
| K513 small |
K533 large |
|
| a) Crotch length | 2½ | 3½ |
| b) Width | 1¼ | 1¾ |
| c) Length | 9 | 11 |
| Pelvic support user dimensions (inches) Indicated by the red arrow below |
|||
| Key user dimension: half of thigh circumference |
|||
| K556 small |
K557 medium |
K558 large |
|
| 4 – 8 | 6 – 10 | 8 – 14 |
|
 |
|||
| Product dimensions (inches) |
|||
| K556 small |
K557 medium |
K558 large |
|
| a) | 6½ | 8½ | 12 |
| b) | 12 | 16 | 20 |
| c) | 7 | 9 | 12 |

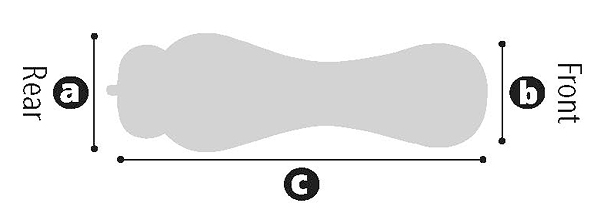

| MPS seat pad dimensions (inches) |
|||
 |
|||
| K672/K673 small/med |
K674 large |
||
| a) Width at back | 3½ | 5¼ |
|
| b) Width at front | 3 | 4½ |
|
| c) Length | 9½ | 10¾ |
|
More information about the Pacer gait trainer is located in the following Product Manuals:
Small, Medium, Large and XL Pacer
Download the Pacer Positioning Checklist
Download the XL Pacer/E-Pacer/TRAM Comparison Chart
